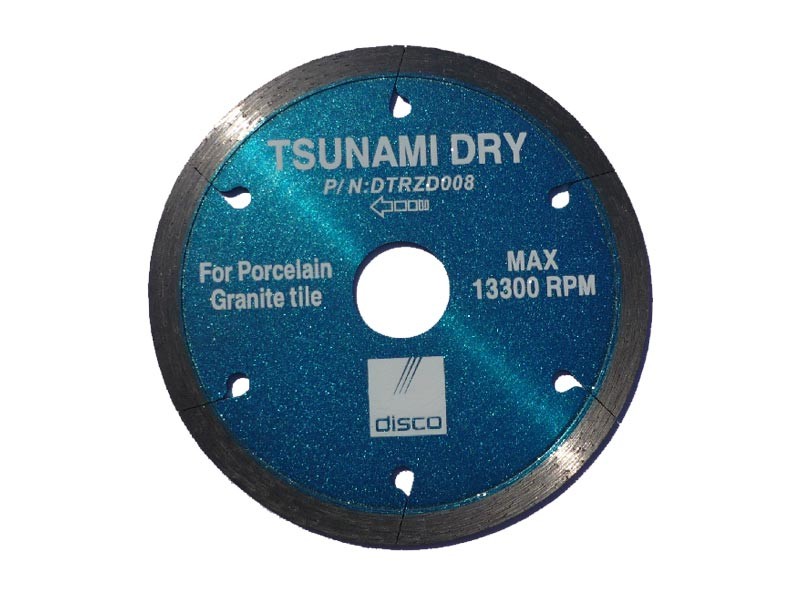

  • Continuous rim tile blade
    名字:

    Continuous rim tile blade

    所属大类:

    属小类:

    关注度:1157

    询盘数:0

    是否推荐:Yes

    aaron@stonediamondtool.com



  • 产品详情

  • part #
    diameter
    width
    height
    bore

    inch
    inch (mm)
    mm
    inch (mm)
    HPB105
    4"
    .063" (1.6)
    8
    7/8" (22.2)
    HPB110
    4.25"
    .063" (1.6)
    8
    7/8" (22.2)
    HPB115
    4.5"
    .063" (1.6)
    8
    7/8" (22.2)
    HPB125
    5"
    .063" (1.6)
    8
    7/8" (22.2)
    HPB150
    6"
    .065" (1.6)
    6/10
    5/8" (15.88)
    HPB180
    7"
    .065" (1.6)
    6/10
    5/8" (15.88)
    HPB200
    8"
    .065" (1.6)
    6/10
    5/8" (15.88)
    HPB230
    19"
    .065" (1.6)
    6/10
    5/8" (15.88)
    HPB250
    10"
    .065" (1.6)
    6/10
    5/8" (15.88)
    HPB300
    12"
    .080" (2.0) / .085" (2.2)
    6/10
    (25.4/60)
    HPB350
    14"
    .085" (2.2) / .095" (2.4)
    6/10
    (25.4/60)

    Features:
    Soft bond, supreme diamond and precise tolerance control provide fast cutting with minimum chipping.  Group blades available, 10-45 blades/set, upon request.
    Applications:
    Ceramic tiles, porcelain, and marble.
    Machinery:
    Tile saw, bevel-tile saw, multi-blade tile saw, hand grinder.
