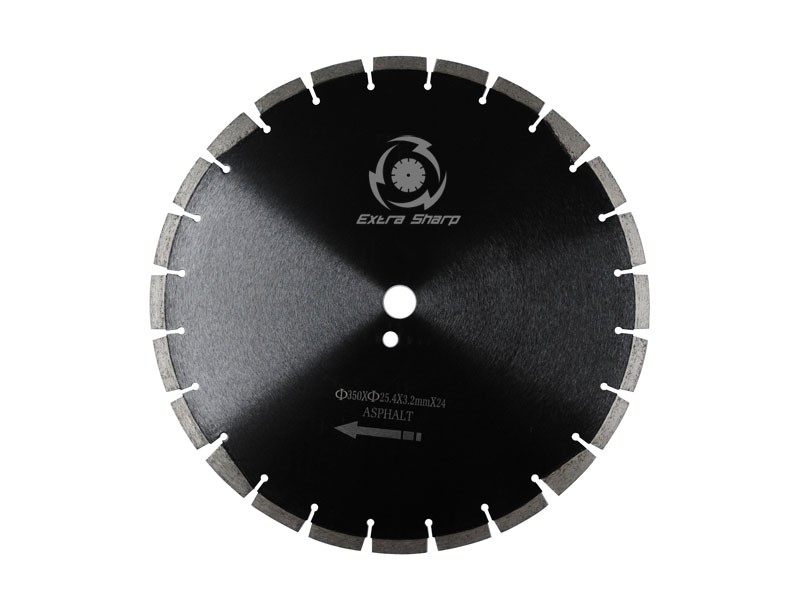

  • Laser welding is a high technology for diamond blade welded in recent years. Feature: Fast cutting and long life, strengthening the security in the process of using blades, especially suitable for handed Motors use.

    Application:
    Asphalt, Green Concrete, Abrasive materials.

    Grade of Blade:
    Super Grade, Superior Grade, Standard Grade, Normal Grade.

    Attention: Multi blade size: 32" to 72"; Silent blade size: 12" to 48"; Arbor size, and other specifications are available on customer's request.

    Delivery Time：7-12 days

    Part NO.  Diameter
         		 segment thickness

    Hole diameter


    		 segment height
    metric
         		 inch
    LHLAC4
         		 105 4 2 22.23 7/8
    LHLAC4.5  115 4.5 2.2 22.23 7/8
    LHLAC5
         		 125 5 2.2 22.23 7/8
    LHLAC6  150 6 2.4 22.23 7/8
    LHLAC7 180 7 2.4 22.23 7/8
    LHLAC8 200 8 2.4 22.23 7/8
    LHLAC9 230 9 2.4 22.23 7/8
    LHLAC10 250 10 2.6 22.23 7/8
    LHLAC12 300 12 3.2 25.4 7/8
    LHLAC14 350 14 3.2 25.4 7/8
    LHLAC16 400 16 3.4 25.4    8/10
    LHLAC18 450 18 3.6 50.0    8/10
    LHLAC20 500 20 3.8 50.0    8/10
    LHLAC22 550 22 4.2 50.0    8/10
    LHLAC24 600 24 4.2 50.0    8/10
