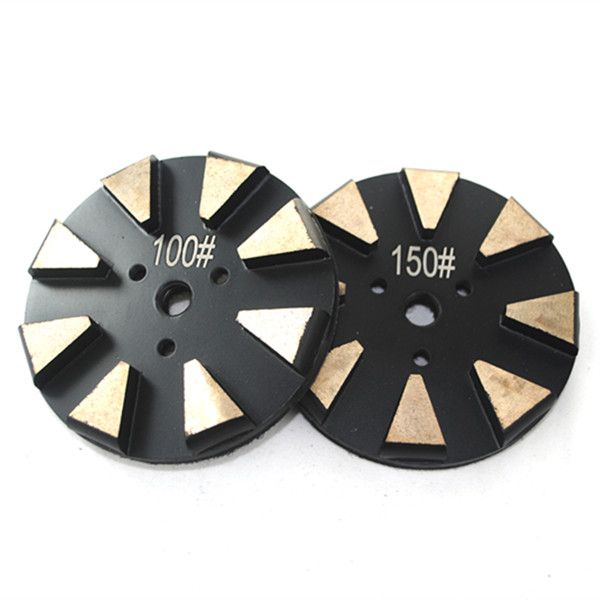

Metal Floor Disc 4inch 8 Segment

 Metal Floor Disc 4inch  8 Segment

8 Segment tooling is a proprietary matrix of high quality abrasive
diamonds embedded evenly throughout each segment. Rounded front edge is
designed for minimal scratching, longer life and exceptional durability with strong
grinding capabilities. The metal segments are designed for wet or dry applications.
The manufacturing process ensures even distribution of abrasives throughout the tool
adding to the longevity and performance of the tooling.
Uses
8 Segment tooling is an excellent diamond tool generally used in the
first few steps of the concrete grinding and polishing process. Depending on the
surface coating, the 8 Segment Tooling can be used as a coatings removal tool up to 1
mm thick (16 grit is ideal) while not gouging the surface. The rugged design of the
tool makes it ideal for heavy grinding, cutting and leveling especially when
aggressive grinding is necessary.
Application
8 Segment tooling is intended to be used on most concrete surfaces. It
is recommended to use a hard bond matrix when the tooling is being used on medium
to soft surfaces while the soft bond matrix is ideal on hard to very hard surfaces. The
use of water in the grinding process will typically increase the life of the tooling as
well as provide a more aggressive grind on the surface. It is highly recommended to
use a vacuum system when dry grinding as this tooling will create large amounts of
dust. 300-600 RPM’s is recommended. Do not exceed 1,000 RPM’s.

 8 Segment

Available in both Hook and Loop Velcro as well as 3 Hole Magnetic

Technical Data:
Packaging
2 per box
Coverage
Coverage can vary from
surface to surface
depending on roughness,
porosity and density of
the medium being
applied. Application
technique can also vary
the coverage. On flat,
dense surfaces, the
coverage should
generally range from
15,000 to 40,000 square
feet per set. Wet
grinding will usually
extend the life of the
tooling.
Specifications
Bond Color: N/A
Grit/Velcro Color:
16 Grit – Black
30 Grit – Black
50 Grit – Black
Bond Matrix:
Hard Bond
Soft Bond
Diameters:
3” and 4”
Thickness:
8 MM
Maximum Speed: 1000
RPM
Use WET or DRY
