  • Product Details

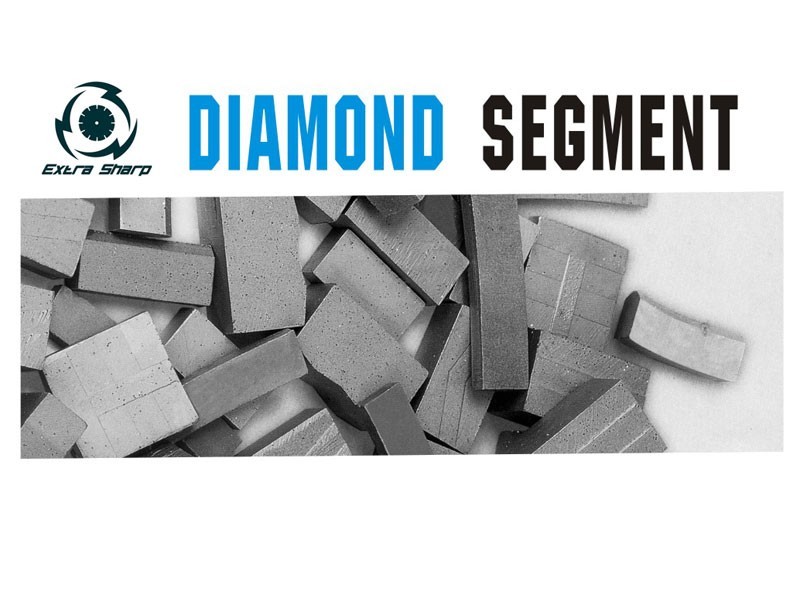

  • Universal diamond segments for Single blades, multi-blades, frame
    Saws, core drills, special shape cutters, etc.
    Other specifications can be ordered by customers.
    Because of high cost of steel core (steel body), we normally reuse steel core several times and we also supply loose segment to our customers.



     Delivery Time：7-12 days





    Segments for Granite & Sandstone
    Diameter Specification Segment No. Application
    Inch mm Segments Dimension pcs/set For Trimming And Slabbing Granite&Marble etc.
    LXWXH(mm)
    36 900 24x6.0/6.3/6.7x15 64
    40 1000 24x6.5/6.8/7.1x15 70
    48 1200 24x7.3/7.6/7.9x15 80
    54 1350 24x8.0/8.3/8.6x15 88
    64 1600 24x8.7/9.0/9.3x15 108
    68 1700 24x8.7/9.0/9.3x15 112
    72 1800 24x9.5/9.8/10.1x15 120
    80 2000 24x9.9/10.2/10.5x15 128
    24x9.9/10.2/10.5x20
    24x9.9/10.2/10.5x30
    86 2200 24x9.9/10.2/10.5x15 132
    24x9.9/10.2/10.5x20
    24x9.9/10.2/10.5x30
    100 2500 24x10.6/11.0/11.4x15 140
    24x10.6/11.0/11.4x20
    24x10.6/11.0/11.4x30
    120 3000 24x12.6/13.0/13.4x15 160
    24x12.6/13.0/13.4x20
    24x12.6/13.0/13.4x30
    140 3500 24x13/13.4/13.8x15 180
    24x13/13.4/13.8x20
    24x13/13.4/13.8x30
