  • Product Details

  • We have a wide range of specifications and sizes.

    Delivery Time：7-12 days


    D(mm)

    Core thickness(mm)

    Segment No.

    Segment dimension
    L×W×H(mm)

    900

    4.5

    64

    24×5.6/6.2×12(15)

    1000

    5.0

    70

    24×6.2/6.8×12(15)

    1200

    5.5

    80

    24×7.0/7.6×12(15)

    1300

    6.0

    88

    24×7.4/8.0×12(15)

    1400

    6.5

    96

    24×7.6/8.2×12(15)

    1600

    7.2

    108

    24×8.4/9.0×12(15)

    1700

    7.0

    112

    24×8.2/8.8×12(15)

    1800

    8.0

    120

    24×9.6/10.4×12(15)

    2000

    8.0

    128

    24×9.8/10.6×12(15)

    2200

    8.5

    136

    24×10.0/10.6×15(15)

    2500

    9.0

    140

    24×10.5/11.5×15(20)

    2700

    9.7

    140

    24×11/12×20(25)

    3000

    10

    160

    24×12/13×25(30)

    3500

    10

    180

    24×12/13×25(30)

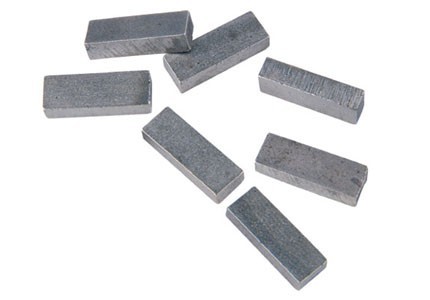

    The segments are attached to the core by brazing with silver solder;
    High-quality Diamond Segment Made from High-grade Diamond by Special and Advanced Technics;
    Segment for diameter 300mm to 4200mm blade;
    Specifications supplied by customers are available;
    High cutting efficiency and long life;
    Segment can be produced for single blade, multi-blade;
    For cutting granite,marble and other stone.
    Our diamond segments for large circular saw blades are always manufactured in sandwich design.No matter what the shapes, the aim is to obtain a good cooling and easy flush away the chipping.Diamonds and bond in the outer and inner layers are carefully designed to ensure cutting stability.
