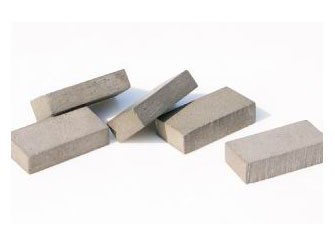

  • Product Details

  • Universal dimension segments for single blades,multi-blades,frame sawa,coer drills,special shape cutters, etc.
    Other soecifcations can be ordered by customers.
    Because of high cost of steel core(steel boby),we normally reuse steel core several times and we also supply loose segment to our customers.


    D(mm)

    Core thickness(mm)

    Segment No.

    Segment dimension
    L×W×H(mm)

    900

    5.0

    64

    24×6.6/6.2×12(20)

    1000

    5.0

    70

    24×6.2/6.8×12(20)

    1200

    5.5

    80

    24×7.0/7.6×12(20)

    1300

    6.0

    88

    24×7.4/8.0×12(20)

    1400

    6.5

    96

    24×7.6/8.2×12(20)

    1600

    6.5

    108/104

    24×8.4/9.0×12(20)

    1800

    7.0

    120

    24×9.6/10.4×12(20)

    2000

    8.0

    128

    24×9.8/10.6×12(20)

    2200

    8.5

    136

    24×10.0/10.6×15(20)

    2500

    9.5

    140

    24×10.5/11.5×15(20)

    3000

    10

    160

    24×12/13×25(30)
